Medium
|
0-70 ° C
|
|
Environment
|
-20+60 ° C
|
|
Connection
|
internal thread 2xRp1/2, 2xRp1/4
|
|
Rated pressure
|
5bar(MOP5)
|
|
Material
|
brass, nickel plated
|

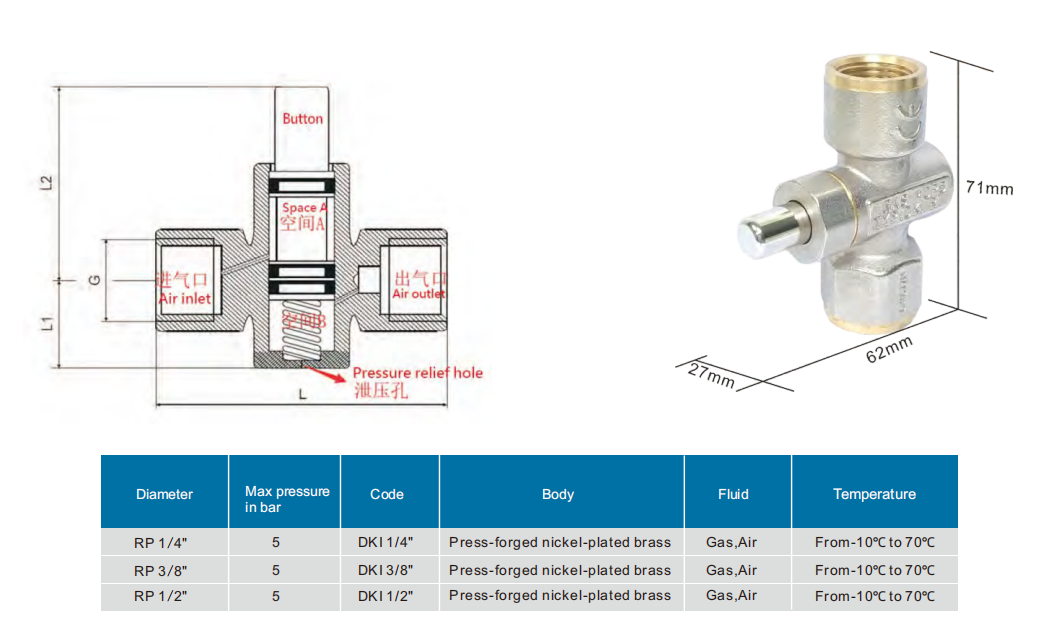

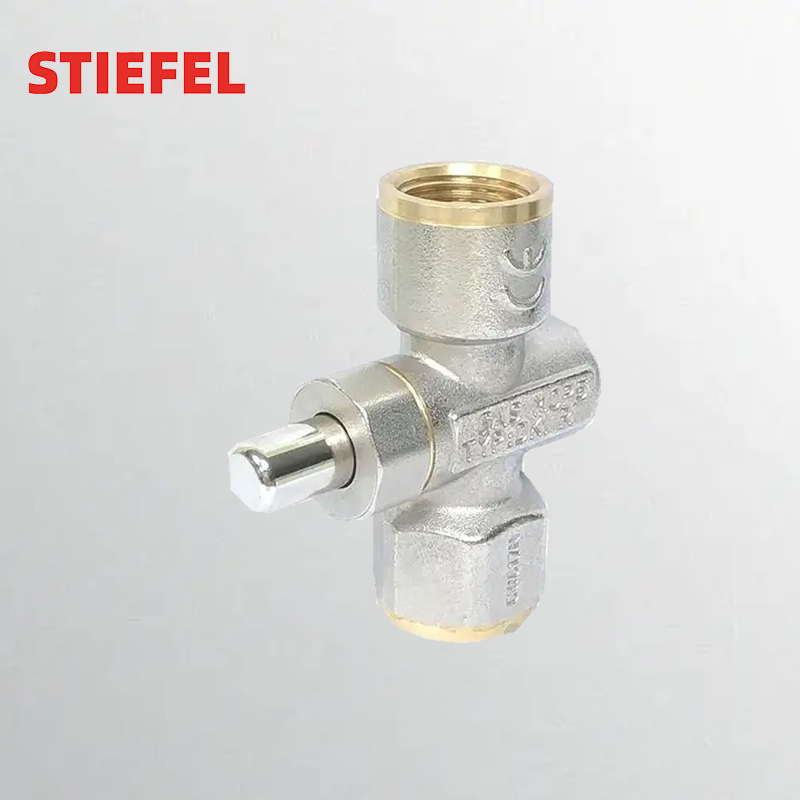

Shut-off element between measuring line and pressure gauge.The valve is normally closed. By pushing the button, the pressure is applied to the pressure gauge to test the existing pressure in the syestem. By releasing the button, the valve automatically closes; the manual pressure gauge returns to 0 setting and to rest position. Suitable for gases as per DVGW and SVGW
