Product Name: |

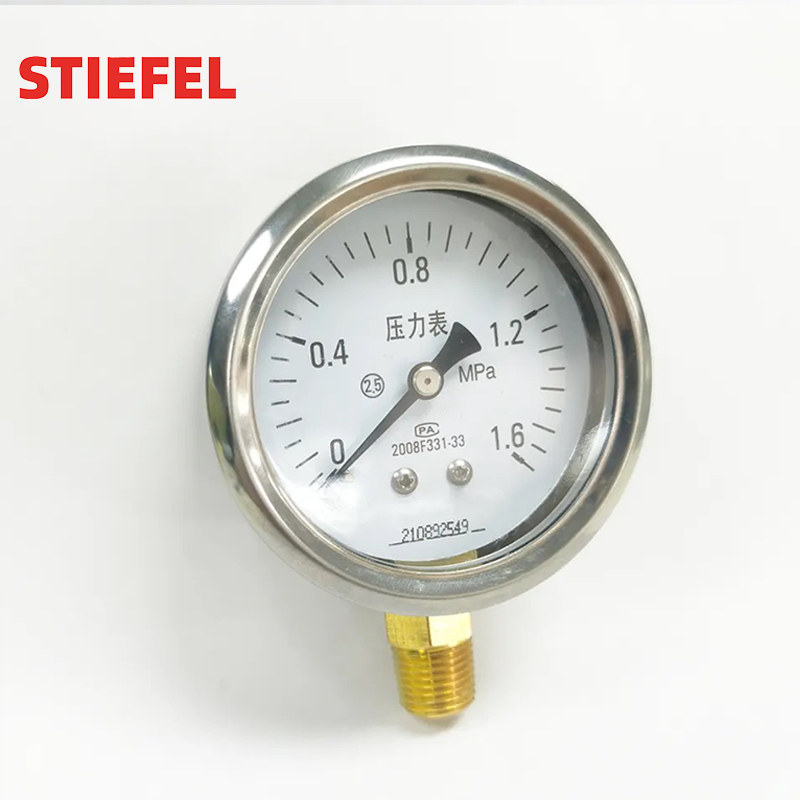

Steel Pressure Gauge |
|
Normal Size: |
2.5"(63mm),4"(100mm),6"(150mm). |
|
Pressure Range: |
-1Bar(-30"Hg)-0-1000Bar(15000Psi) |
|
Accuracy: |
±1%,±1.6% |
|
Operating temperature: |
-20°C to +60°C |
|
Case: |
normal steel |
|
Bezel: |
normal steel |
|
Bourdon tube: |
Copper alloy or Stainless steel <100Bar: C-Type ≥100Bar: Helical Type |
|
Connection: |
304 or 316 Stainless steel |
|
Movement: |
316 Stainless steel |
|
Dial: |
Aluminum |
|
Pointer: |
Aluminum |
|
Window: |
Safety or Tempered Glass |
|
Thread: |
1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc. |
|
Liquid: |
Glycerin or Silicone |
|
Gaskets Filling cap: |
Nitrile or Silica gel |
|
Model |
Structure Type |
Precision% |
Measurement Upper Limit MPa |
|
YN-40/YN-40ZYN-50/YN-50Z/YN-50ZTYN-60/YN-60T/YN-60Z/YN-60ZT |

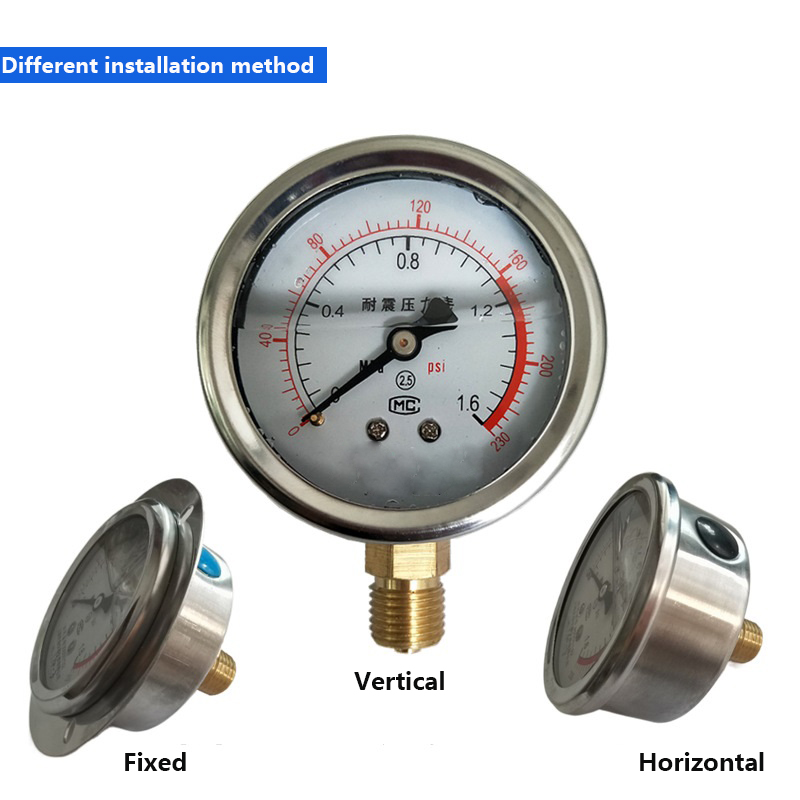

Radial Axial With Edge |
2.5 |
0-0.1; 0-0.16; 0-0.25; 0-0.4;0-0.6; 0-1; 0-1.6; 0-2.5;0-4; 0-6; 0-10; 0-16;0-25; 0-40; 0-60;-0.1-0; -0.1-0.06; -0.1-0.15 ;-0.1-0.3;-0.1-0.5; -0.1-0.9; -0.1-1.5; -0.1-2.4 |
|
YN-100/YN-100T/YN-100Z/YN-100ZTYN-150/YN-150Z/YN-150ZT |
Radial Axial With Edge |
1.6 |
0-0.1; 0-0.16; 0-0.25; 0-0.4;0-0.6; 0-1; 0-1.6; 0-2.5;0-4; 0-6; 0-10; 0-16;0-25; 0-40; 0-60;-0.1-0; -0.1-0.06; -0.1-0.15 ;-0.1-0.3;-0.1-0.5; -0.1-0.9; -0.1-1.5; -0.1-2.4 |
