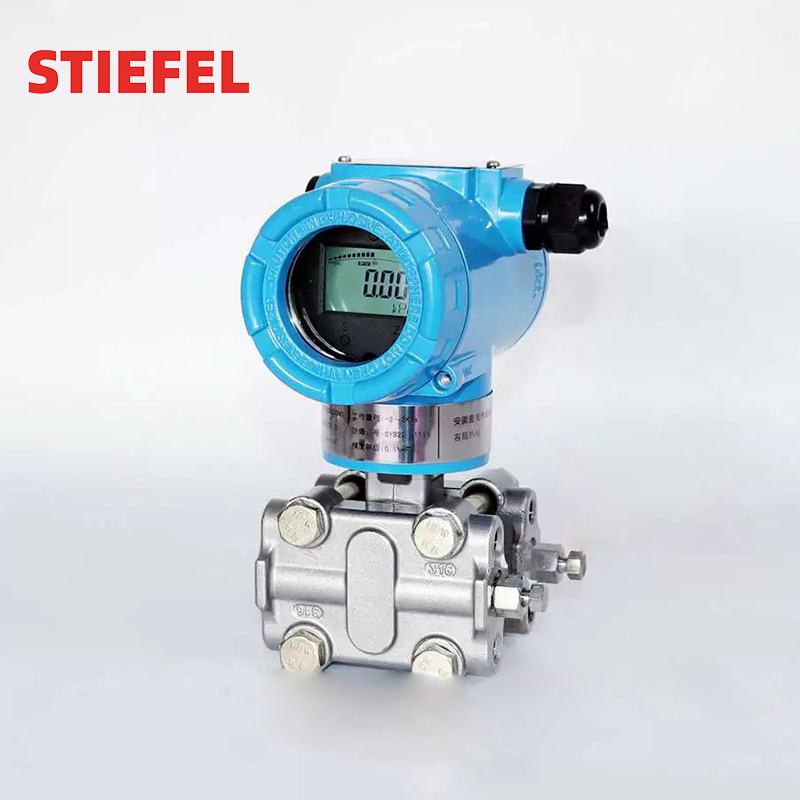

Dimension
|
Medium |
liquid, gas and steam |
|
|
Measuring Range |
0~0.1kPa to 0~40MPa |
|
|
Output |
4~20mA DC+HART protocol |
|
|
Accuracy |
±0.1%FS |
|
|
Range and null point |
Adjustable |
|
|
Power Supply |
12~45V DC, generally 24V DC |
|
|
Protection |
IP65 |
|
|
Storage Temperature |
-40~+125°C |
|
|
Overload Limit |
150%-200% of rated range |
|
|
Load Resistance |
750Ω(See below diagram 1 for load characteristic ) |
|
|
Relative Humidity |
5~95% |
|
|
Converter housing |
Low copper cast aluminum alloy with Polyurethane paint |
|
|
Fill Fluid |
Silicon / Fluorine Oil |
|
|
Process Connections |
1/2NPT, 1/4NPT |
|
|
Static pressure |
4, 10, 25, 32Mpa |
|
|
Mounting |
Directly supported by piping or optionally with mounting bracket for 2" pipes or with direct or remote seals. 3-way valve |
|
|
Maximum positive shift |
500% of minimum adjusting span |
|
|
maximum negative shift |
600% of minimum adjusting span |
|
|
Material |
Flange/Adaptor |
Stainless Steel 316/Monel/ Haste alloy/Carton Steel |
|
Drains/Vents |
Stainless Steel 316/Monel / Haste alloy |
|
|
Diagrams |
Stainless Steel 316/Monel /Haste alloy C/ Tantalum |
|
|
Wetted O-Ring |
Viton/ Buna-N |
|
|
Seal O-Ring |
Viton/ Buna-N |
|
|
Bolts & Nuts |
Carton Steel/Stainless Steel316 |
|
Wiring Diagrams
Connect the bench equipment as shown in Figure, and turn on the HART-based communicator by pressing the ON/OFF key. The communicator will search for a HART-compatible device and will indicate when the connection is made. If the communicator fails to connect, it will indicate that no device was found.
