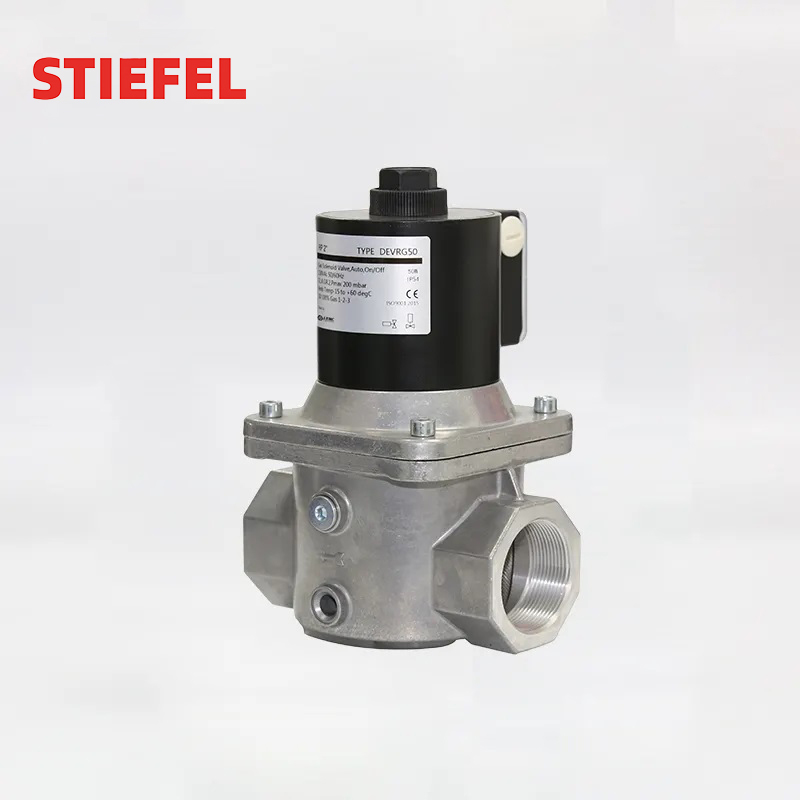

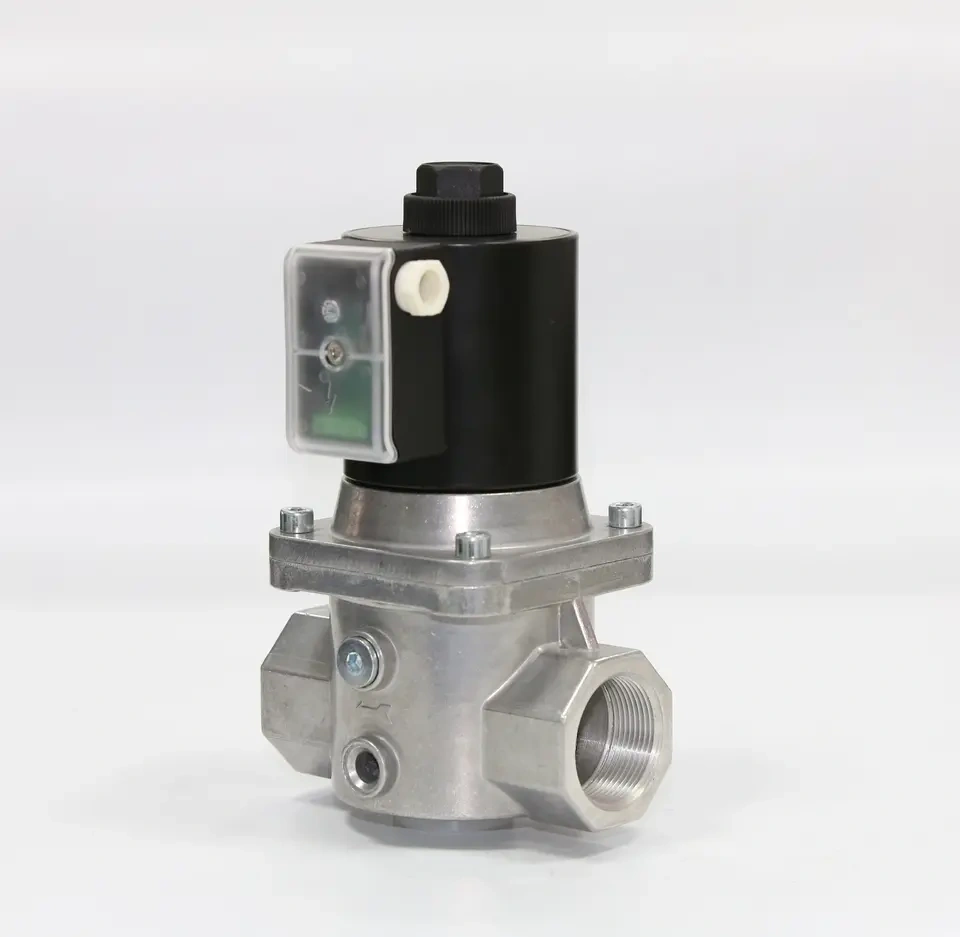

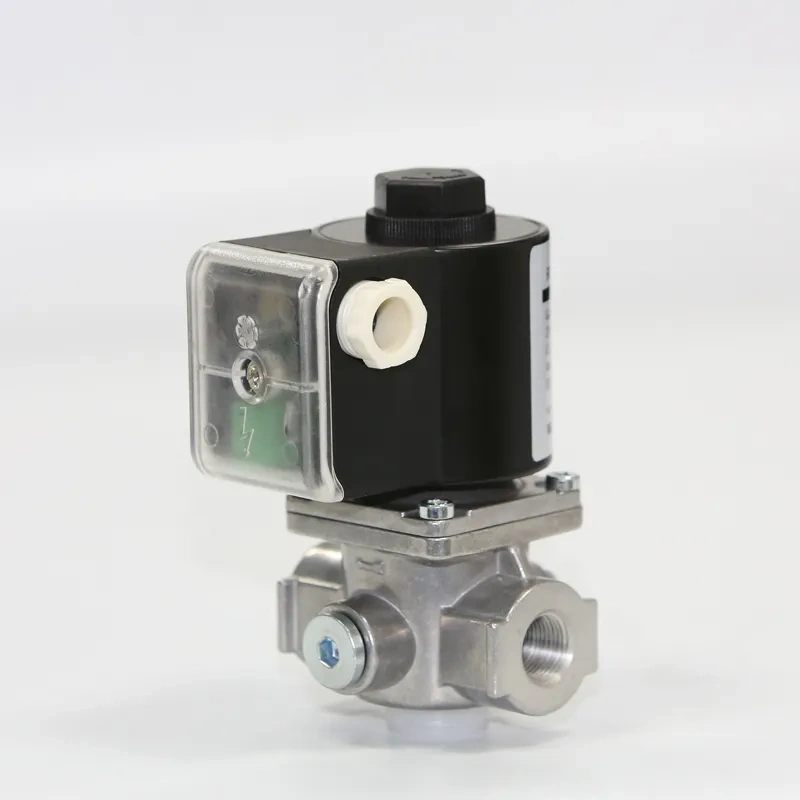

This type valve is a fast opening solenoid valve that is normally closed, with adjustable flow. When it’s not energized, the spring works on the disc keeping the passage closed; while it’s energized,
the valve opens rapidly to the set position.

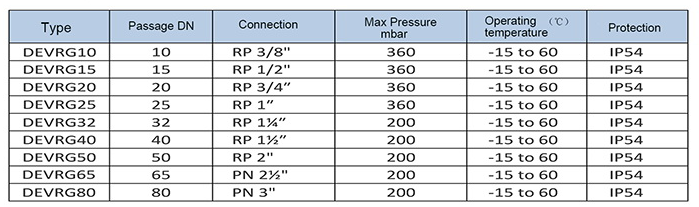

Max working Pressure:
DN 10-25:360mbar;
DN 32-50:200mbar
-15℃-60℃,two way, normally closed, IP54
